Diesel 12HP180

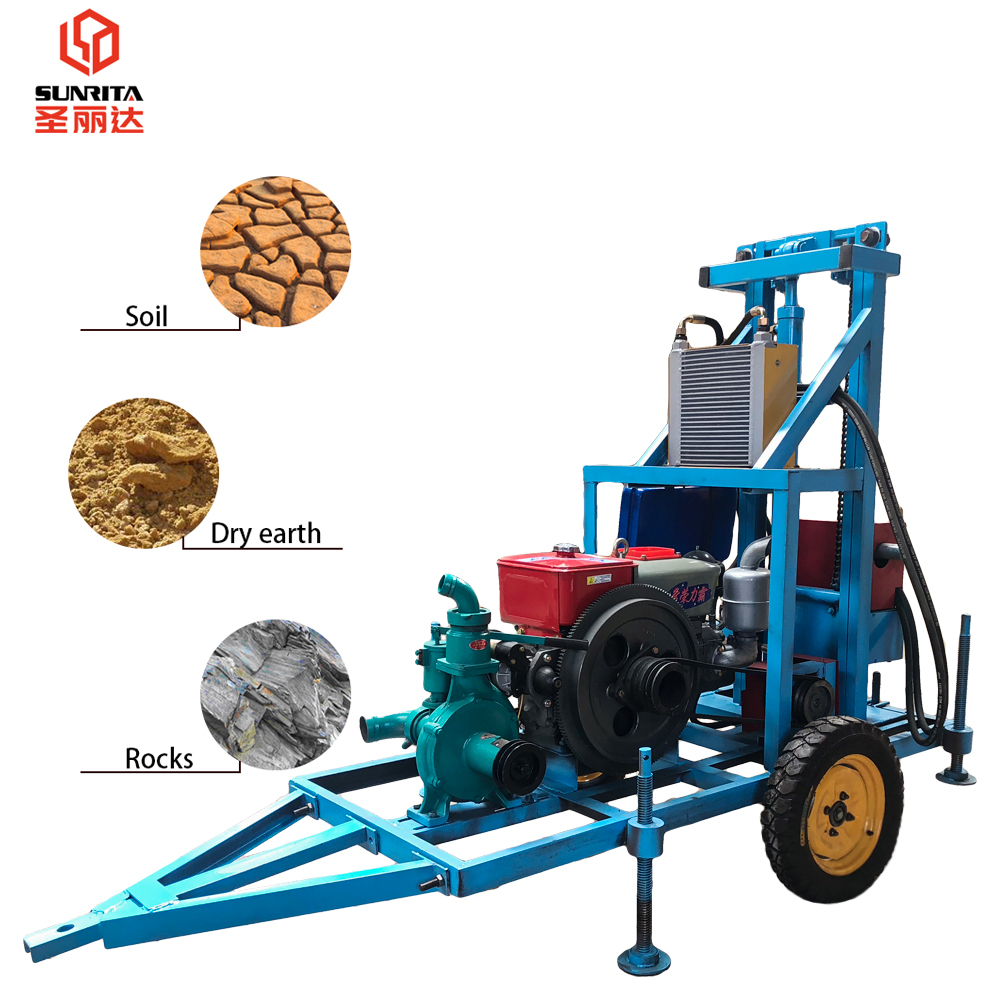

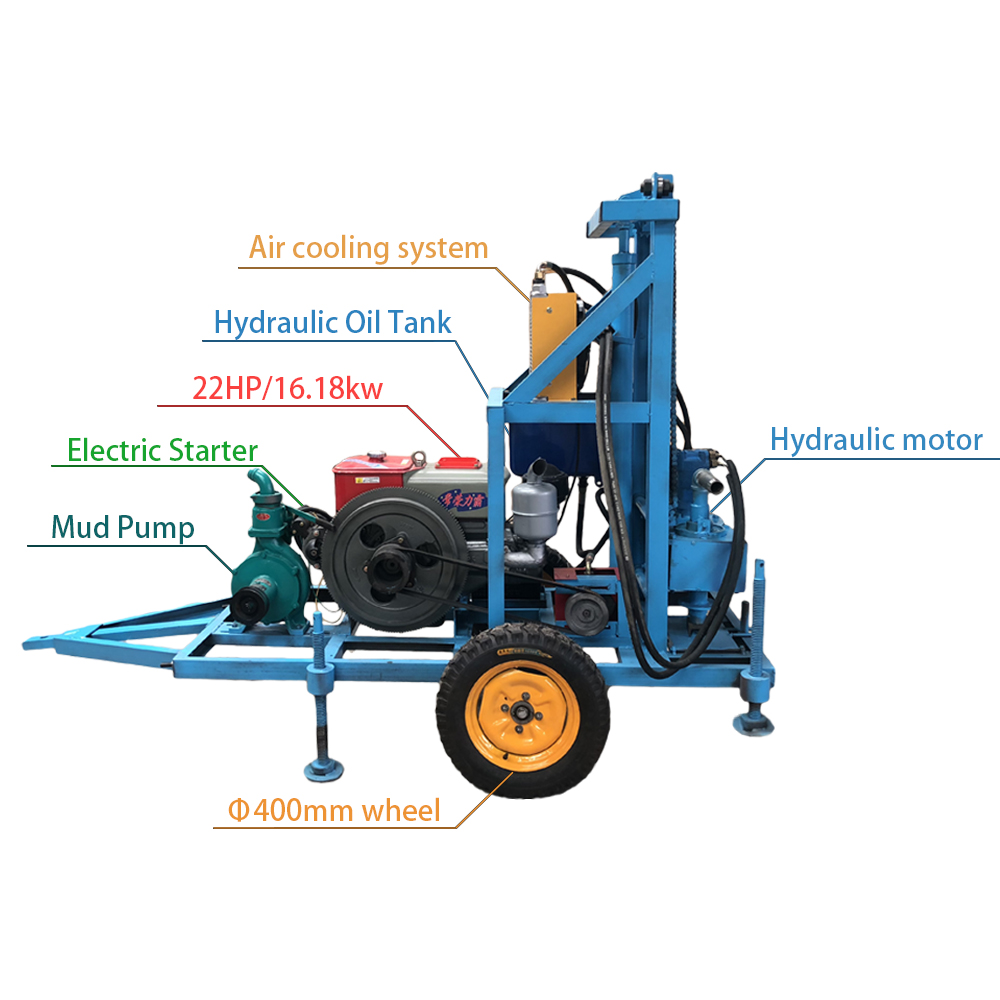

Diesel hydraulic water well drilling machine
Technical Parameters of Diesel Hydraumatic Well Drilling Machine
Model of drilling machine
Model 150
Drilling machine overall dimension(mm)
1700……
Diesel hydraulic water well drilling machine
| Technical Parameters of Diesel Hydraumatic Well Drilling Machine | |
| Model of drilling machine | Model 150 |
| Drilling machine overall dimension(mm) | 1700*700*1700 |
| Weight of Drilling machine (kg) | 500 |
| Drill rod diameter (mm) | Ø51 |
| Drill rod length(mm) | 1600 |
| Rod change method | Full automatic screw thread |
| Hydraulic Cooling method | Air-cooled |
| Diesel motor start method | Key Electric start |
| Drilling depth(m) | 150 |
| Diesel Motor power (Hp) | 22hp/16.18kw |
| Torque | 350N*m |
| Drilling method | Percussive and rotating type |
| Pump power (Hp) | 3hp/2.2kw |
| Drilling hole diameter(mm) | Within Ø 400mm |
| Hosting height(mm) | 2500 |
| Hosting capacity (kg) | 1200 |
|
Completed unit of drilling machine include main engine, tools, Lifting Ring *1，2 units alloy drilling bit, 1 unit high pressure water pump, 5 meter high pressure water pipe,and English manual. |
|
