Electric 4000W

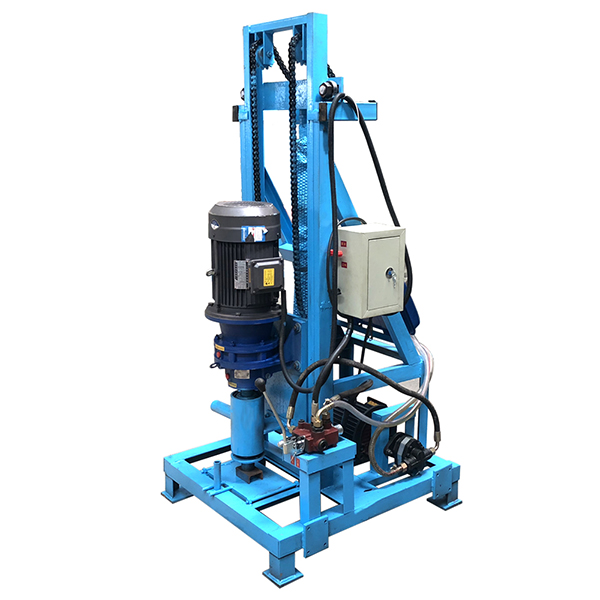

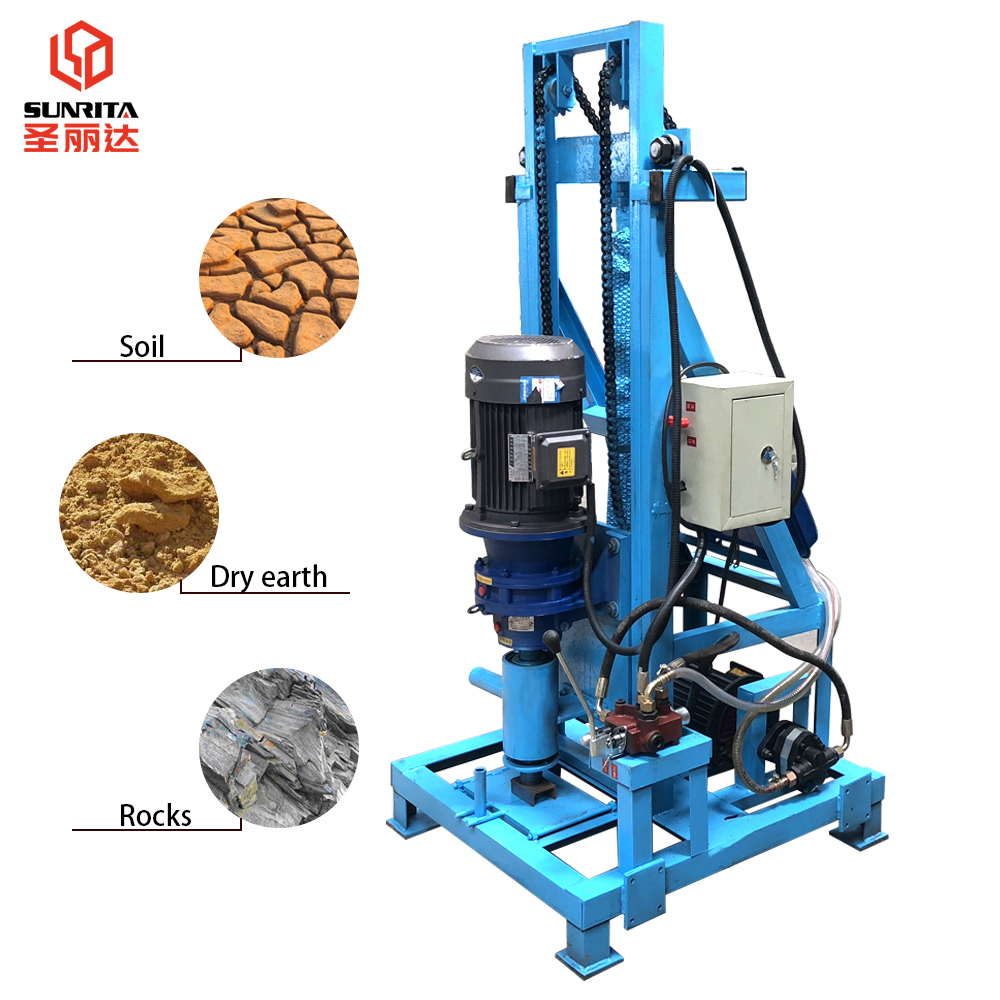

Electric water well drilling rig
Detailed parameters of electric water well drilling rig
Product Model
Type 120
Product Specifications(Cm)
90X110X180 cm
weight(kg)
320kg
Diameter of drill……
Electric water well drilling rig
| Detailed parameters of electric water well drilling rig | |
| Product Model | Type 120 |
| Product Specifications(Cm) | 90X110X180 cm |
| weight(kg) | 320kg |
| Diameter of drill pipe (mm) | Ø51 |
| Drill pipe length(mm) | 1600 |
| Method of rotating the drill pipe | Automatic thread |
| Hydraulic cooling method | Air cooling |
| Depth of borehole(m) | 150 |
| Motor power | 7/4kw |
| Torque | 350N*m |
| Drilling methods | Impact and rotation |
| Power of the slurry pump (Hp) | 3hp/2.2kw |
| Borehole diameter(mm) | Ø 400mm |
| Hosting height(mm) | 2500 |
| Hosting capacity (kg) | 1200 |

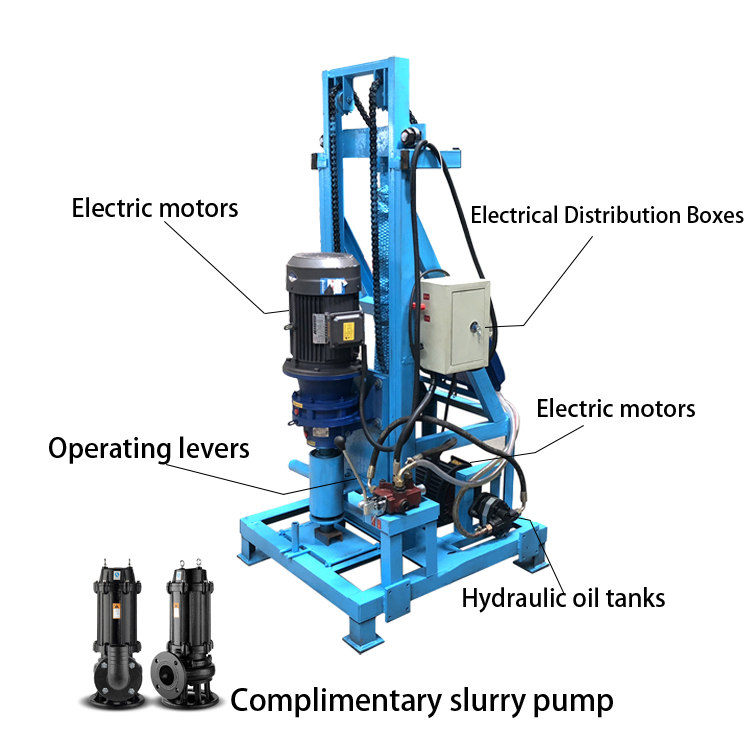

| Completed unit of drilling machine include main engine, tools, Lifting Ring
*1，2 units alloy drilling bit, 1 unit high pressure water pump, 5 meter high pressure water pipe,and English manual. |
|
The Type 120 Drilling Machine – an unrivaled solution to all your drilling requirements. This powerful piece is designed with outstanding specifications that put it ahead of other drills in the market.
Its size measures at an impressive 90X110X180cm with a total weight of approximately320kg; indeed a heavy-duty asset that can conquer tough drilling conditions easily. Its accompanying drill pipe measures at an impressive diameter of51mm and lengthof1600mm- effectively digging deep into whatever material necessary with minimal effort due to its automatic thread method feature aiding rotation for more effortless usage while working efficiently thanks to air cooling hydraulic technology preventing overheating issues commonly faced by many other drills.Exhibitinga motor power capacityof7/4kwand torqueofup to350N*m,this versatile machineis fitfor successfully accomplishing varying depths such as150meters makingit ideal forwell drillingor geophysical/geotechnical inquiries.
When it comes to versatility in performing different types of drills like impact or rotation, few machines match up to the Type 120 Drilling Machine. Its powerful drill operates through an equally potent slurry pump rated at 3hp/2.2kw – ensuring seamless uninterrupted flow throughout every stage of your project.
Its diameter size measures out at Ø400mm while hosting height hits an impressive peak of up to 2500mm – putting it in good stead in handling varying job sizes efficiently. The robust construction generates a hosting capacity of 1200kg that guarantees optimum performance and longevity, making the Type 120 drilling machine an ideal tool for different types of drilling needs such as mineral exploration or water well drilling.
Suitable for civil and industrial drilling and geothermal drilling, it has the advantages of large diameter, deep drilling, fast drilling, flexible movement, and a wide range of ap […]

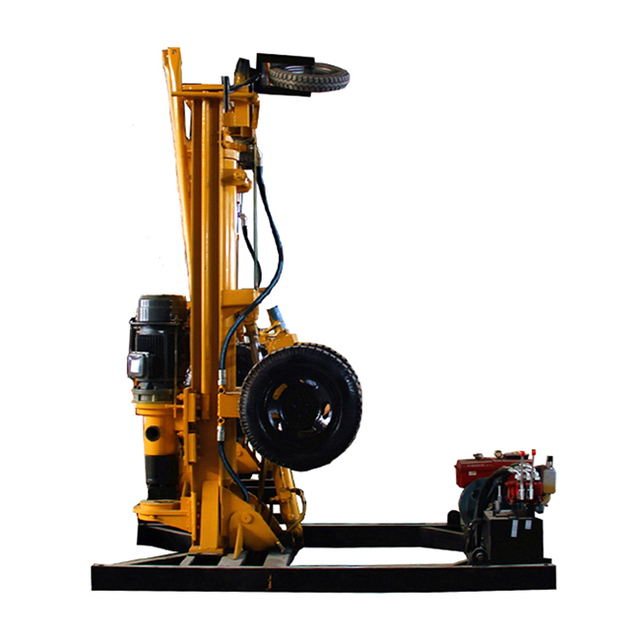

FYX200 water well drilling rig features water and gas crawler type 200m deep water drilling features. equipped with 65KW Yuchai turbocharged engine with strong power. […]
