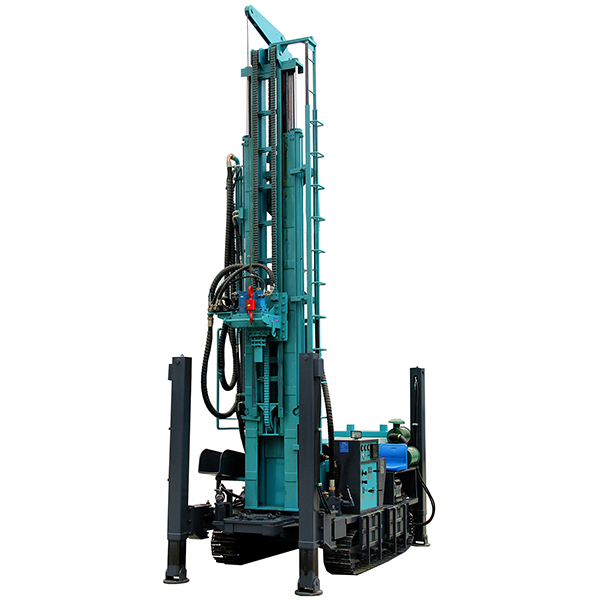

FY450 Water Well Drilling Rig
FY450 water well drilling rig features
1. It is an efficient and multi-functional downhole water well drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, g……
FY450 water well drilling rig features
1. It is an efficient and multi-functional downhole water well drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells, and other kinds of boreholes. It is especially suitable for water extraction projects in mountainous areas and rock formations.
2、The machine can drill in different strata (rock layer, mud layer, sand layer), and the maximum hole diameter can reach 450mm.
3、The machine adopts high torque hydraulic motor power head and brand diesel, and the hydraulic control system adopts a large diameter hydraulic cylinder. The brand diesel fuel is protected by a 2-stage air filtration system, or you can use clean air from an air compressor directly.
4、Unique bump design and centralized control of the operating system, easy to maintain and convenient for machine operation.
5、The machine adopts excavator crawler chassis with high off-road performance, and also can be mounted on a truck for more maneuverability.
6、Two gear rotations and feeding speeds make it work in the soil and rock layer.
7、Independent cooling dual system adopts hydraulic oil temperature cooling and carries traditional air cooling. Long engine life.
8, engine brand: Weichai (DEUTZ brand technology) 103KW Euro III emission standards.
9, can add dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump.
| The weight（T） | 9.4 | Drill pipe diameter（mm） | Φ89 Φ102 |
| The hole diameter（mm） | 140-350 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth（m） | 450 | Rig lifting force（T） | 25 |
| One-time advance （m）length | 6.6 | Rapid rise （m/min）speed | 20 |
| Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Width of loading（m） | 2.8 |
| Equipped capacitor（kw） | 103 | Hoisting force of winch（T） | 2 |
| Using air pressure（MPA） | 1.7-3.5 | Swing torque（N.m） | 7000-9500 |
| Air consumption（m³/min） | 17-36 | Dimension（mm） | 5950×2100×2600 |
| Swing speed（rpm） | 50-135 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.6 |
| The engine brand | Weichai engine ( National III ) | ||
We are excited to introduce our innovative downhole water well drilling equipment that revolutionizes the field with its adaptability and productivity. Designed to tackle all types of boreholes including constructing wells for agricultural irrigation or geothermal activity or sourcing portable water wells from mountainous regions, this machine boasts rugged construction that can effectively conquer rocky terrains where other drills tend to fail. Its dynamic capability extends beyond conventional machinery as it drills through diverse strata such as sand layer, mud layer and rock layer while maintaining ultimate hole diameter capacity at 450mm making it supremely suitable for large-scale projects spanning various sectors.
Our equipment packs ample power thanks to its hydraulic motor and ensures seamless drilling experience no matter how challenging the terrain be while accommodating multiple-drill-bits – all of which guarantees that your specific drilling demands are met perfectly in every way possible. Our downhole water well drilling equipment is a versatile solution suitable for both hard rock and soft soil drilling needs. This high performing machine boasts features like fuel efficient design allowing it to run uninterrupted for hours on just one tank of fuel and simple controls which make operation effortless even for those with no experience in operating such machinery before! Along with being highly efficient our equipment is optimised to provide superior performance under tough conditions thanks in part to its robust construction – ensuring longevity without any compromise on productivity – perfect for those long term projects where consistent performance over time is vital! Finally maintenance procedures are made easy with straightforward processes that anyone could follow without any confusion or difficulty – making sure that downtime from maintenance issues remains at an absolute minimum! To summarise: when looking for a top performing multi functional downhole water well drilling equipment significantly optimised towards enhancing productivity while easing operations coupled with excellent durability and low maintenance requirements – then look no further than ours!
