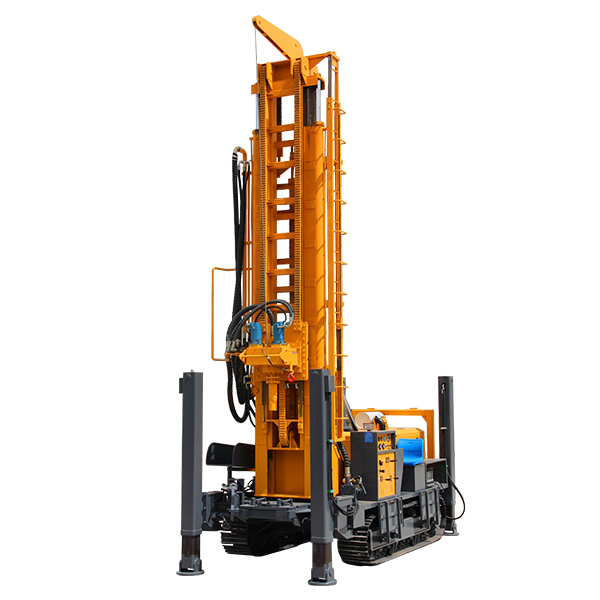

FY800 Water Well Drilling Rig
FY800 water well drilling rig features water and gas crawler type 800m deep water drilling features.
Equipped with 194KW Cummins 6-cylinder turbocharged engine, with strong power and long se……
FY800 water well drilling rig features water and gas crawler type 800m deep water drilling features.
| The weight（T） | 13 | Drill pipe diameter（mm） | Φ102 Φ108 Φ114 Φ117 |
| The hole diameter（mm） | 140-400 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth（m） | 800 | Rig lifting force（T） | 36 |
| One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 20 |
| Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Width of loading（m） | 2.95 |
| Equipped capacitor（kw） | 194 | Hoisting force of winch（T） | 2 |
| Using air pressure（MPA） | 1.7-3.5 | Swing torque（N.m） | 9000-14000 |
| Air consumption（m³/min） | 17-42 | Dimension（mm） | 6300×2300×2650 |
| Swing speed（rpm） | 45-140 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.7 |
| The engine brand | Cummins engine | ||
Introducing our cutting edge drilling rig that features a Cummins 6 cylinder turbocharged engine complemented by a patented composite movable arm, double oil cylinder lifting system and strengthening tower. With these advanced components working in tandem this rig guarantees exceptional performance and durability as well.
The powerful 194KW Cummins engine can easily penetrate through even the toughest surfaces – rocky or otherwise via its exceptional performance capacity. Meanwhile the patented composite movable arm allows for smooth positioning of the drill head at various angles; boosting drilling efficiency significantly. Adding to its capabilities are the double oil cylinder lifting system and strengthening tower- ensuring maximum stability during operation.
Overall this drilling rig promises unparalleled success in all your rock penetration requirements. A slew of features distinguishes this impressive drilling rig as a stalwart in challenging environments. The components work in tandem to extend added stability and support during operations.
One particularly noteworthy attribute is its Italian imported oil pump: a cutting-edge 3-link pump furnished with foam pumps, winches, multi-functional generators catering to various needs that streamline operations while rendering tasks easier than ever before. A baffle adorns each rig’s main arm to safeguard its oil cylinder; thereby increasing operational longevity while ensuring peak performance standards for years to follow.
With such capabilities on display,this ultra-efficient drilling rig presents itself as an exceptional pick among peers performing similarly demanding tasks such as mining or constructing facilities or delving into petroleum reserves searching for viable resource sites.Without doubt,this efficient tool can provide you with confidence that your projects will proceed without interruption.
